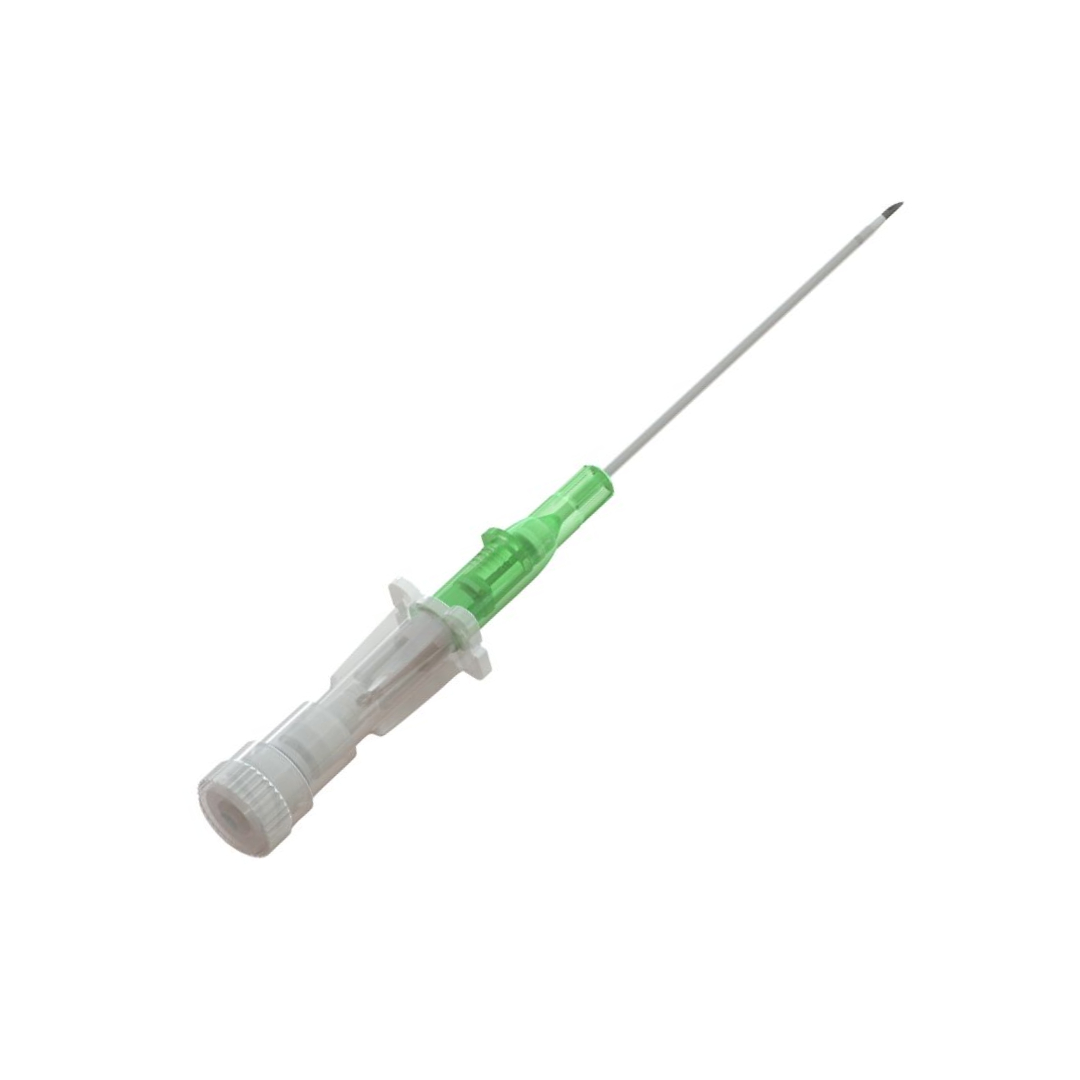

IV CANNULA WITHOUT INJECTION PORT AND WINGS
Product Code : I01613XXXX*
Maiswin I.V. Cannula without injection port & wings has been designed to prevent exposure from additional opening in the catheter.
01. Specially designed beveled back cut needle offers lower penetration force which is less painful to the patient.
02. Transparent flashback chamber for conformation of vein penetration.
03. Specially made up of European catheter and Japanese needles, offer less penetration force.
04. Made up of Medical Grade material, tends to long indwelling time.
05. Color coding for size identification.
06. Master carton dimension: 70×29.5×21 cm
07. Packing: 100/1000pcs per inner/Master Carton
01. FEP/PUR/TPU Catheter
02. With radiopaque lines/ Without radiopaque lines
03. Medical grade paper/ Tyvek paper
04. Different catheter length (14G-26G)
05. Broad hard blister packing
| Size | Color Code | Ext. Dia. mm | Catheter Lenght mm | Flow Rate mi./min | Packing Inner/Outer unit |
|---|---|---|---|---|---|
| 14G | Orange | 2.1 | 45 | 300 | 100/1000 |
| 16G | Grey | 1.7 | 45 | 200 | 100/1000 |
| 17G | White | 1.5 | 45 | 140 | 100/1000 |
| 18G | Green | 1.3 | 45 | 95 | 100/1000 |
| 20G | Pink | 1.1 | 32 | 62 | 100/1000 |
| 22G | Blue | 0.9 | 25 | 33 | 100/1000 |
| 24G | Yellow | 0.7 | 19 | 20 | 100/1000 |
| 26G | Violet | 0.6 | 19 | 15 | 100/1000 |
