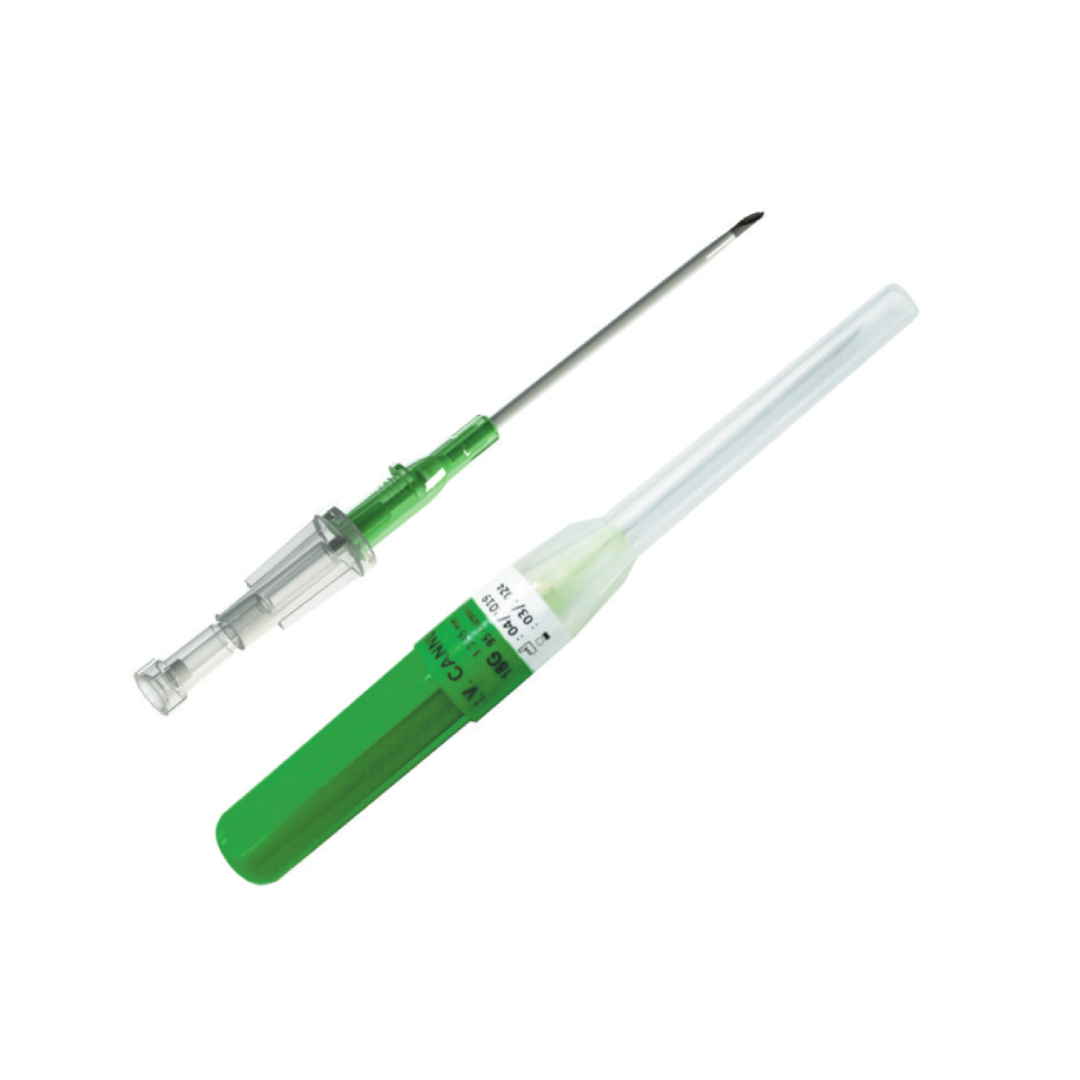

IV CANNULA WITHOUT INJECTION PORT AND WINGS AND WITH COLOR CODED CAP
Product Code : I0161428XX*
Maispen I.V. Cannula without injection port & wings acquiring color coded cap has been specially designed with projection for low point gap to facilitate better maneuvering.
01. Specially designed beveled back cut needle offers lower penetration force which is less painful to the patient.
02. Transparent flashback chamber for conformation of vein penetration.
03. Specially made up of European catheter and Japanese needles, offer less penetration force.
04. It is Packed in pen shaped plastic molded body for convenient handling and safe disposal of needle.
05. The Needle Hub designed for proper grip during insertion.
06. Master carton dimension: 67×32.5×20.5 cm
07. Packing: 100/1000pcs per inner/Master Carton
01. FEP/PUR/TPU Catheter
02. With radiopaque lines/ Without radiopaque lines
03. Medical grade paper/ Tyvek paper
04. Different catheter length (14G-26G)
05. Broad hard blister packing
| Size | Color Code | Ext. Dia. mm | Catheter Lenght mm | Flow Rate mi./min | Packing Inner/Outer unit |
|---|---|---|---|---|---|
| 14G | Orange | 2.1 | 45 | 300 | 100/1000 |
| 16G | Grey | 1.7 | 45 | 200 | 100/1000 |
| 17G | White | 1.5 | 45 | 140 | 100/1000 |
| 18G | Green | 1.3 | 45 | 95 | 100/1000 |
| 20G | Pink | 1.1 | 32 | 62 | 100/1000 |
| 22G | Blue | 0.9 | 25 | 33 | 100/1000 |
| 24G | Yellow | 0.7 | 19 | 20 | 100/1000 |
| 26G | Violet | 0.6 | 19 | 15 | 100/1000 |
