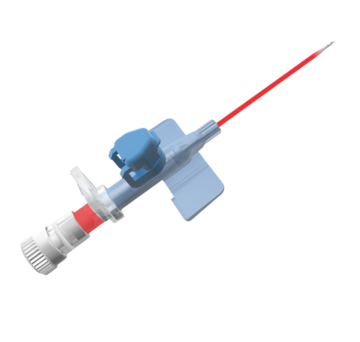

IV CANNULA WITH INJECTION PORT AND WINGS WITH INSTANT FLASHBACK CHAMBER
Product Code : I01304XXXX*
Maisflex I.V. Cannula having flip-top injection port & wings with exquisite colored body and having instant flashback chamber has been designed to supply additional medication or fluids.
01. Specially designed beveled back cut needle offers lower penetration force which is less painful to the patient.
02. Injection port with one way silicone injection valve for intermittent medication.
03. Instant flashback chamber for conformation of vein penetration.
04. Specially made up of European catheter and Japanese needles, offer less penetration force.
05. Specially designed Flip flop cap that incorporates a recessed plug with a protective skirt to prevent contamination when the valve isn’t getting used. Flexible wings for easy fixation.
06. Master carton dimension: 69.5×32×17.5 cm
07. Packing: 100/1000pcs per inner/Master Carton
01. FEP/PUR/TPU Catheter
02. With radiopaque lines/ Without radiopaque lines
03. Medical grade paper/ Tyvek paper
04. Different catheter length (14G-26G)
05. Broad hard blister packing
| Size | Color Code | Ext. Dia. mm | Catheter Lenght mm | Flow Rate mi./min | Packing Inner/Outer unit |
|---|---|---|---|---|---|
| 14G | Orange | 2.1 | 45 | 300 | 100/1000 |
| 16G | Grey | 1.7 | 45 | 200 | 100/1000 |
| 17G | White | 1.5 | 45 | 140 | 100/1000 |
| 18G | Green | 1.3 | 45 | 95 | 100/1000 |
| 20G | Pink | 1.1 | 32 | 62 | 100/1000 |
| 22G | Blue | 0.9 | 25 | 33 | 100/1000 |
| 24G | Yellow | 0.7 | 19 | 20 | 100/1000 |
| 26G | Violet | 0.6 | 19 | 15 | 100/1000 |
