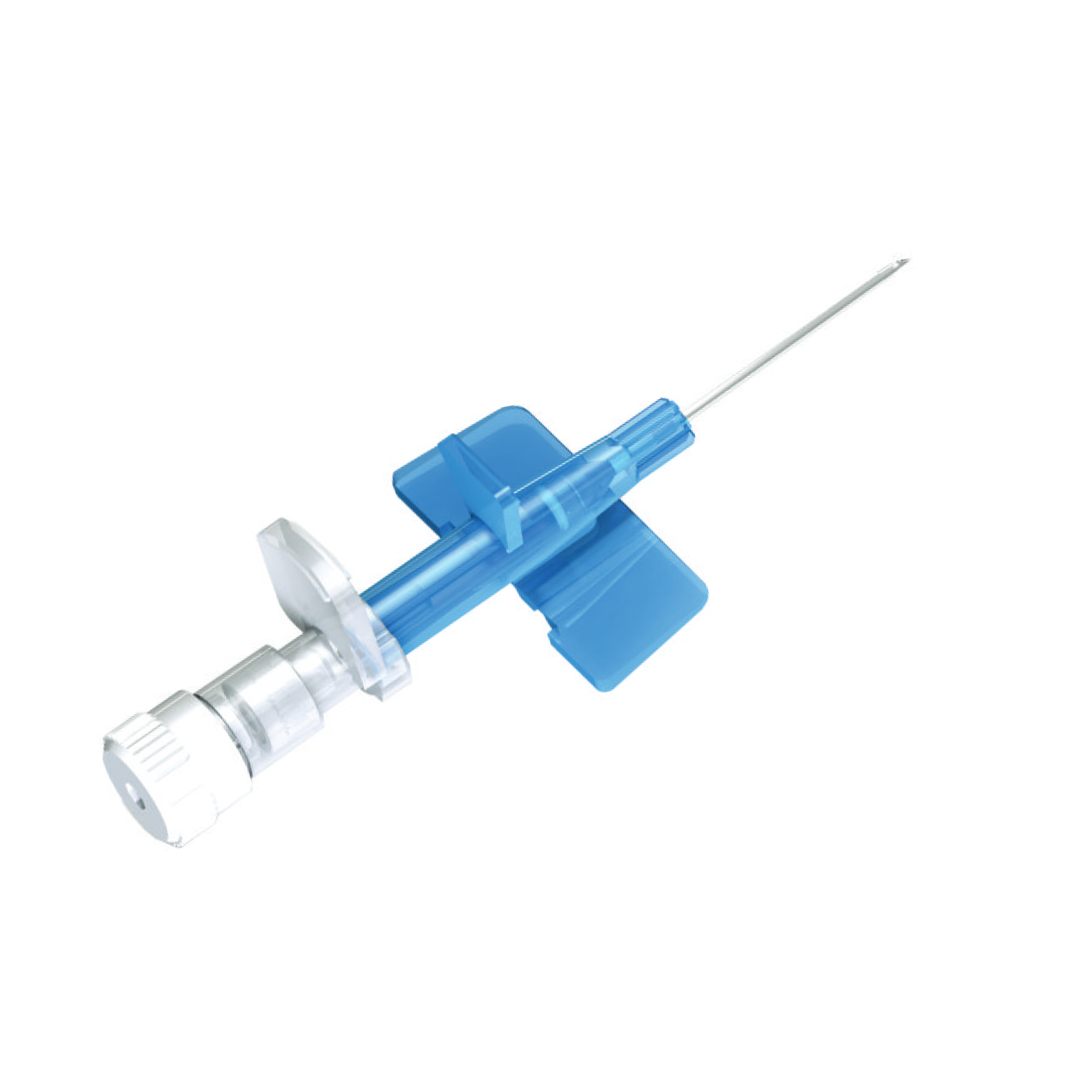

IV CANNULA WITHOUT INJECTION PORT AND WITH WINGS
Product Code : I01206XXXX*
Maiscan I.V. Cannula without injection port & with wings acquiring exquisite colored body has been designed to supply additional medication or fluids.
01. Specially designed beveled back cut needle offers lower penetration force which is less painful to the patient.
02. Transparent flashback chamber for conformation of vein penetration.
03. Specially made up of European catheter and Japanese needles, offer less penetration force.
04. Gauge wise complete body is colored for easy identification.
05. Made up of Medical Grade material, tends to long indwelling time.
06. Master carton dimension: 69.5×32×17.5 cm
07. Packing: 100/1000pcs per inner/Master Carton
01. FEP/PUR/TPU Catheter
02. With radiopaque lines/ Without radiopaque lines
03. Medical grade paper/ Tyvek paper
04. Different catheter length (14G-26G)
05. Broad hard blister packing
| Size | Color Code | Ext. Dia. mm | Catheter Lenght mm | Flow Rate mi./min | Packing Inner/Outer unit |
|---|---|---|---|---|---|
| 14G | Orange | 2.1 | 45 | 300 | 100/1000 |
| 16G | Grey | 1.7 | 45 | 200 | 100/1000 |
| 17G | White | 1.5 | 45 | 140 | 100/1000 |
| 18G | Green | 1.3 | 45 | 95 | 100/1000 |
| 20G | Pink | 1.1 | 32 | 62 | 100/1000 |
| 22G | Blue | 0.9 | 25 | 33 | 100/1000 |
| 24G | Yellow | 0.7 | 19 | 20 | 100/1000 |
| 26G | Violet | 0.6 | 19 | 15 | 100/1000 |
